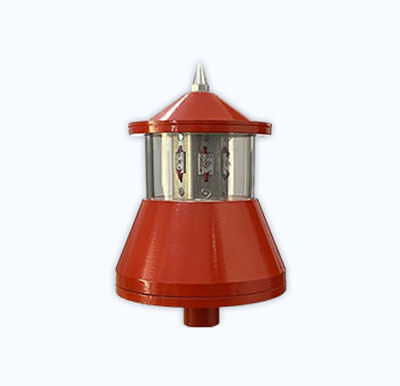

Low Intensity Obstruction Light

Used as night fire, the light conforms to ICAO Low Intensity, Type 'A/B', / FAA L810. It nocturnal beacons the structure with 45 meters of height or less.

product

Model: AVL-LIA/B

Type A: Red Stationary Burning Light, 10 Cd
Type B: Red Stationary Burning Light, 32 Cd

General Specifications:

  • Visibility through fog, rain, dust storm
  • No electromagnetic, radio-frequency interference
  • Wind resistance capability greater than 150kmph
  • Rated light output after 100k burning hours
  • Programmable timer/Photo sensor for automatic dusk to dawn operation
  • Status monitoring of lights on LCD and in master controller at ground level
  • Clear borosilicate glass lens for reduced sand blasting
  • Low or no maintenance required
  • Available with service and standby feature
  • Available with solar option

Technical Specifications:

Intensity >10/32Cd
Color Red
Beam spread Horizontal 360°
Beam spread Vertical 15°
Input Voltage 110-270VAC
Input Frequency 50/60Hz
Operating Voltage 12V/24V DC
Operating Temperature -45° to +85°C
IP protection IP65
Weight 1.4Kg(Approx.)
