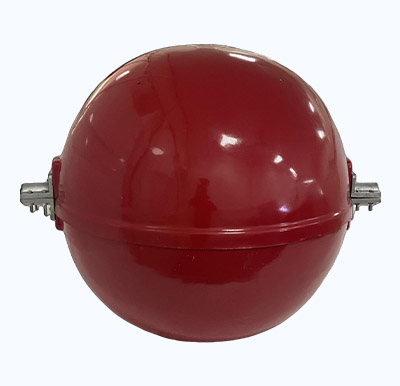

Aircraft Warning Sphere

Aircraft Warning Sphere is used for warning aircraft pilots in daytime which is compliant with International Civil Aviation Organization (ICAO) recommendations annex 14 chapter 6. It can be used in overhead cable, guyed wire, especially in extra high voltage power transmission line, cross river power transmission line, cross road, bridge power transmission line and so on.

product

Model: AVL-FRP(600mm)

General Specifications:

  • Glass Fiber reinforced (Fiber glass)
  • UV stabilized colors dissolved in raw material
  • Available in two halves
  • Available in complete Red/Orange/White or half Red/Orange and half White colors

Technical Specifications:

Diameter 600mm
Weight 5.5 kg (Approx.)
Material Fiber glass
Color Red/Orange/white
Hardware Stainless steel
Clamps Aluminium alloy LM6 fixing clamps
Drain Holes 5 no. in each hemisphere for rain water exit
